What are the tech specs of the MOVE+?Updated 3 months ago

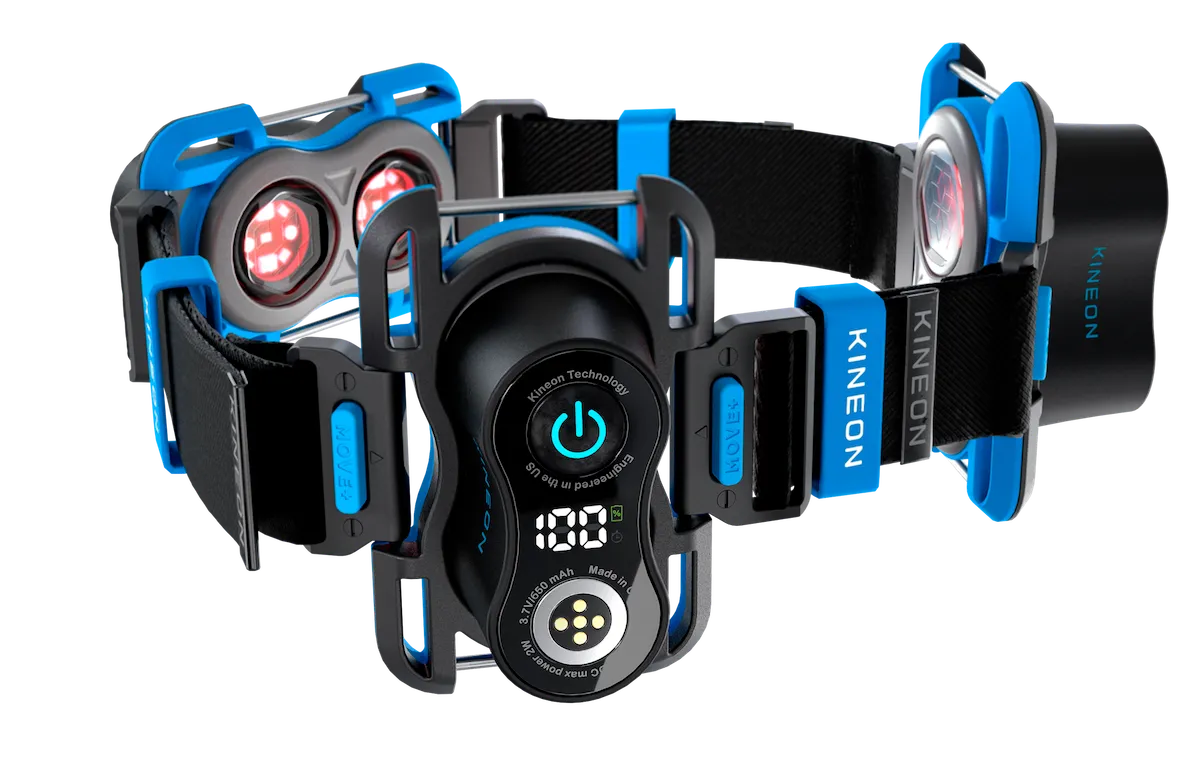

The MOVE+ uses low-angle emission LEDs and Infrared (IR) lasers to penetrate joint tissue, reduce pain and inflammation and improve long-term recovery for chronic and acute conditions.

This means you get the benefits of both wavelengths – the LEDs for helping to stimulate collagen production, improve circulation, and treat surface-level inflammation, and the laser diodes for deeper tissue healing.

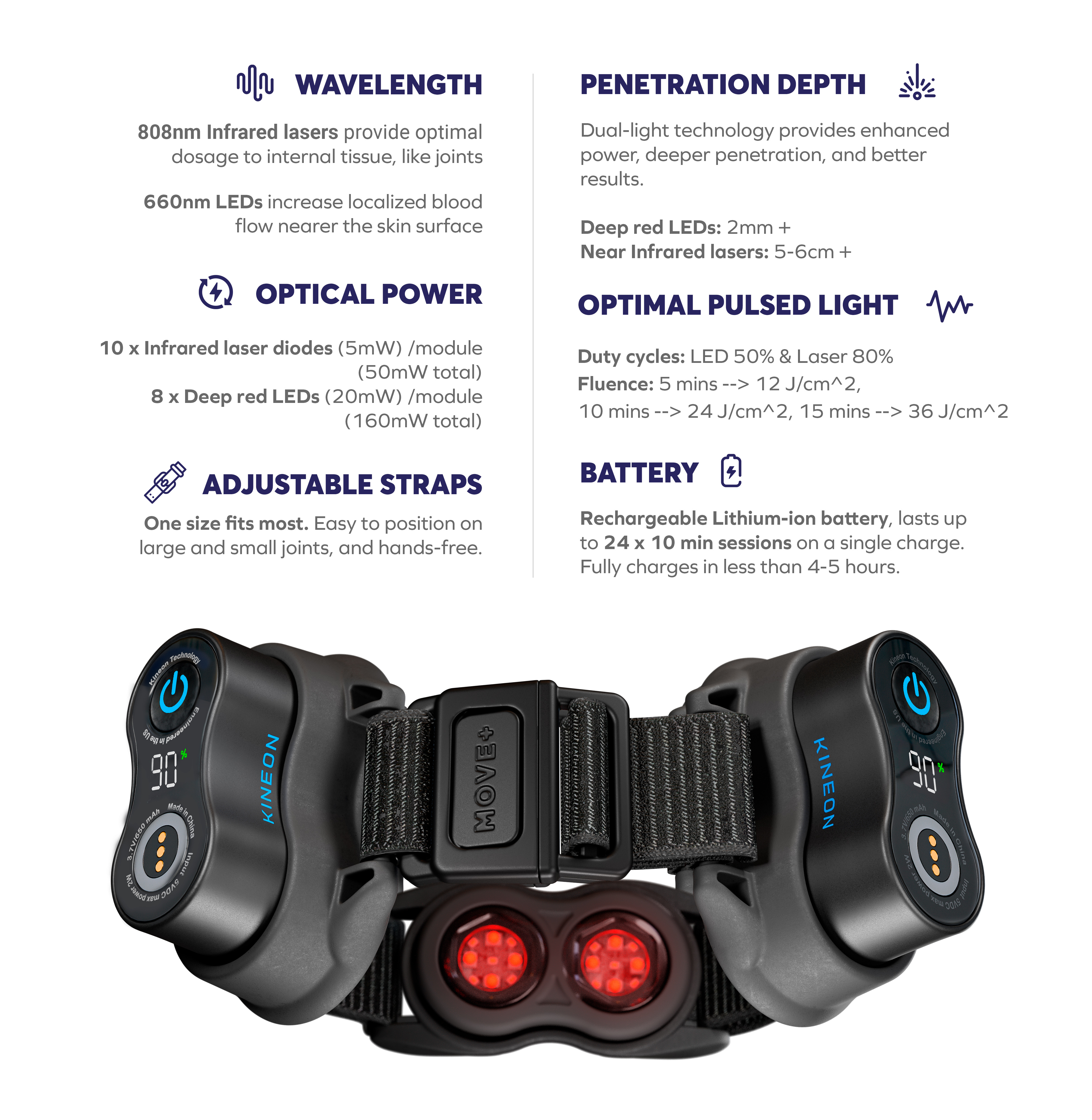

Configuration

  • 3 x modules per unit

  • 2 emission areas per module


Wavelength

  • 8 x 650nm deep red LEDs per module

  • 10 x 808nm Infrared lasers per module


Optical Power

  • Infrared lasers (class 1): 5mW per laser diode, 50mW per module

  • Deep red LEDs: 80mW per emission area

Having modeled and tested hundreds of levels of light distribution, these specs were found to be the most effective!


Battery

  • Rechargeable Lithium-ion battery

  • Each module lasts for around 4 hours of continuous use (or 24 10-minute sessions).

  • 3.5 hour recharge time using the magnetic charging dock.


Application Time

  • 5-15 minutes per session, 1-2 days per day


Accessories

  • Adjustable strap

  • Charge case

  • 5v USB-C > USB-A charge cable

  • Carry case


Dimensions

  • 59 mm x 37 mm x 37 mm
